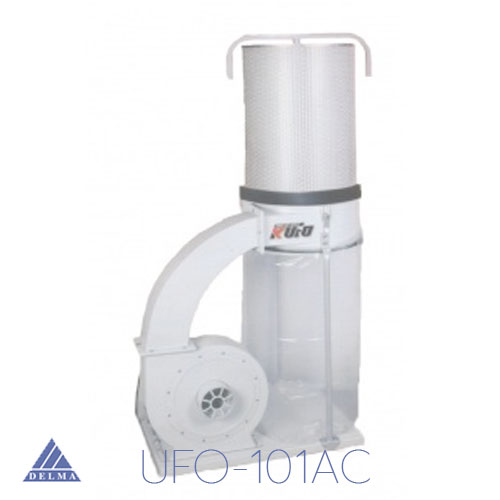

UFO-101AC
General Details
| Model | UFO-101AC |
|---|---|
| Motor | 2 HP 220,380,220/380 V |
| Inlet diameter | 125 mm. (5″) x 1
100mm. (4″) x 2 |
| Air volume | 37.1 Cu.M/min.(1,312 CFM) |
| Bag Capacity |
0.15 Cu.M. (5.2 Cu.ft.) |
| Static pressure of water
Filter Material |
7.82 inch
1 Micron Polyester |
| Packing
Packing Filter Size |
58X92X58 CM.
54x82x54 CM. |
| Assembly Size |
60x110x193 CM. |
| Gross weight(approx.) | 84 kgs. |
